XR33155, XR33152, RS-485/RS-422 Transceivers

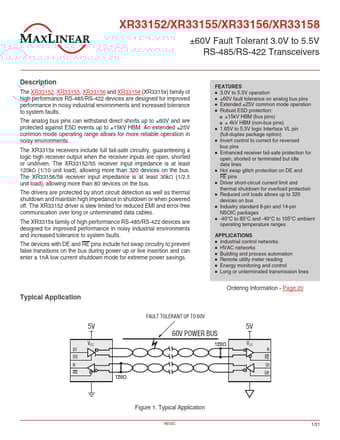

XR33152/XR33155/XR33156/XR33158 ±60V Fault Tolerant 3.0V to 5.5V RS-485/RS-422 Transceivers .
The XR33152, XR33155, XR33156 and XR33158 (XR3315x) family of high performance RS-485/RS-422 devices are designed for improved performance in noisy in.

XR33152-MaxLinear.pdf

XR33155 Datasheet Preview — This datasheet PDF includes multiple part numbers: XR33155, XR33152. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

XR33155, XR33152

Manufacturer:

MaxLinear

File Size:

280.19 KB

Description:

RS-485/RS-422 Transceivers

Note:

This datasheet PDF includes multiple part numbers: XR33155, XR33152.
Please refer to the document for exact specifications by model.

Features

* 3.0V to 5.5V operation
* ±60V fault tolerance on analog bus pins
* Extended ±25V common mode operation
* Robust ESD protection: ±15kV HBM (bus pins) ± 4kV HBM (non-bus pins)
* 1.65V to 5.5V logic Interface VL pin (full-duplex package option)

Applications

* Industrial control networks
* HVAC networks
* Building and process automation
* Remote utility meter reading
* Energy monitoring and control
* Long or unterminated transmission lines Ordering Information - Page 20 5V VCC DI DE R RE FAULT TOLE
