XR33158 - RS-485/RS-422 Transceivers

This page provides the datasheet information for the XR33158, a member of the XR33152 RS-485/RS-422 Transceivers family.

Datasheet Summary

Description

The XR33152, XR33155, XR33156 and XR33158 (XR3315x) family of high performance RS-485/RS-422 devices are designed for improved performance in noisy industrial environments and increased tolerance to system faults.

Features

  • 3.0V to 5.5V operation.
  • ±60V fault tolerance on analog bus pins.
  • Extended ±25V common mode operation.
  • Robust ESD protection: ±15kV HBM (bus pins) ± 4kV HBM (non-bus pins).
  • 1.65V to 5.5V logic Interface VL pin (full-duplex package option).
  • Invert control to correct for reversed bus pins.
  • Enhanced receiver fail-safe protection for open, shorted or terminated but idle data lines.
  • Hot swap glitch protection on DE and RE.

📥 Download Datasheet

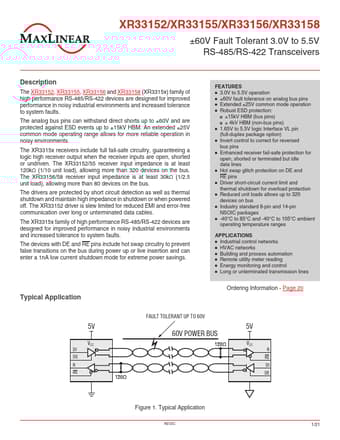

Datasheet preview – XR33158

Datasheet Details

Part number XR33158
Manufacturer MaxLinear
File Size 280.19 KB
Description RS-485/RS-422 Transceivers
Datasheet download datasheet XR33158 Datasheet
Additional preview pages of the XR33158 datasheet.

📁 Similar Datasheet

  • XR33158 - TIA-485/TIA-422 Transceivers (Exar)
  • XR33152 - TIA-485/TIA-422 Transceivers (Exar)
  • XR33155 - TIA-485/TIA-422 Transceivers (Exar)
  • XR33156 - TIA-485/TIA-422 Transceivers (Exar)
  • XR33180 - TSOT23 RS-485/RS-422 Receivers (Exar)
  • XR33181 - TSOT23 RS-485/RS-422 Receivers (Exar)
  • XR33183 - TSOT23 RS-485/RS-422 Receivers (Exar)
  • XR33184 - TSOT23 RS-485/RS-422 Receivers (Exar)
  • XR33193 - TSOT23 RS-485/RS-422 Transmitters (Exar)
  • XR33194 - TSOT23 RS-485/RS-422 Transmitters (Exar)
Other Datasheets by MaxLinear
  • XR33152 - RS-485/RS-422 Transceivers
  • XR33155 - RS-485/RS-422 Transceivers
  • XR33156 - RS-485/RS-422 Transceivers
  • XR33180 - TSOT23 RS-485/RS-422 Receivers
  • XR33181 - TSOT23 RS-485/RS-422 Receivers
  • XR33183 - TSOT23 RS-485/RS-422 Receivers
  • XR33184 - TSOT23 RS-485/RS-422 Receivers
  • XR33193 - TSOT23 RS-485/RS-422 Transmitters

Full PDF Text Transcription

Click to expand full text
XR33152/XR33155/XR33156/XR33158 ±60V Fault Tolerant 3.0V to 5.5V RS-485/RS-422 Transceivers Description The XR33152, XR33155, XR33156 and XR33158 (XR3315x) family of high performance RS-485/RS-422 devices are designed for improved performance in noisy industrial environments and increased tolerance to system faults. The analog bus pins can withstand direct shorts up to ±60V and are protected against ESD events up to ±15kV HBM. An extended ±25V common mode operating range allows for more reliable operation in noisy environments. The XR3315x receivers include full fail-safe circuitry, guaranteeing a logic high receiver output when the receiver inputs are open, shorted or undriven.
