XR33183, XR33180, TSOT23 RS-485/RS-422 Receivers

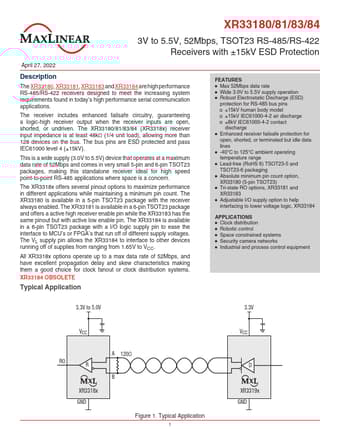

XR33180/81/83/84 3V to 5.5V, 52Mbps, TSOT23 RS-485/RS-422 Receivers with ±15kV ESD Protection April 27, 2022 .
The XR33180, XR33181, XR33183 and XR33184 are high performance RS-485/RS-422 receivers designed to meet the increasing system requirements found in to.

XR33180-MaxLinear.pdf

XR33183 Datasheet Preview — This datasheet PDF includes multiple part numbers: XR33183, XR33180. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

XR33183, XR33180

Manufacturer:

MaxLinear

File Size:

616.28 KB

Description:

TSOT23 RS-485/RS-422 Receivers

Note:

This datasheet PDF includes multiple part numbers: XR33183, XR33180.
Please refer to the document for exact specifications by model.

Features

* Max 52Mbps data rate
* Wide 3.0V to 5.5V supply operation
* Robust Electrostatic Discharge (ESD) protection for RS-485 bus pins
* ±15kV human body model
* ±15kV IEC61000-4-2 air discharge
* ±8kV IEC61000-4-2 contact discharge
* Enhanced receiver failsafe protection for

Applications

* The receiver includes enhanced failsafe circuitry, guaranteeing a logic-high receiver output when the receiver inputs are open, shorted, or undriven. The XR33180/81/83/84 (XR3318x) receiver input impedance is at least 48kΩ (1/4 unit load), allowing more than 128 devices on the bus. The bus pins are
