XR33193

TSOT23 RS-485/RS-422 Transmitters

XR33193 Features

* Date rate options of 250kbps, 2.5Mbps and 20Mbps

* Tiny 6-pin TSOT23 package

* 3.3V ±5% supply operation

* Robust ESD protection ±15kV Human Body Model (bus pins) ±4kV Human Body Model (all other pins)

* Short-circuit protection

* Thermal prote

XR33193 General Description

The XR33193, XR33194, and XR33195 are a high performance RS-485/RS-422 driver family offered in a tiny TSOT23 package designed to meet the increasing system requirements found in today’s performance serial communication applications. These standalone drivers operate off a single 3.3V supply and meet.

XR33193 Datasheet (269.29 KB)

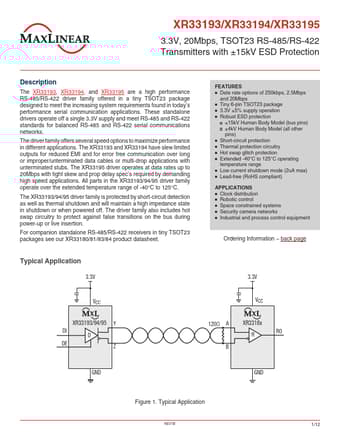

Preview of XR33193 PDF

Datasheet Details

Part number:

XR33193

Manufacturer:

MaxLinear

File Size:

269.29 KB

Description:

Tsot23 rs-485/rs-422 transmitters.
