XR33195 - TSOT23 RS-485/RS-422 Transmitters

This page provides the datasheet information for the XR33195, a member of the XR33193 TSOT23 RS-485/RS-422 Transmitters family.

Datasheet Summary

Description

The XR33193, XR33194, and XR33195 are a high performance RS-485/RS-422 driver family offered in a tiny TSOT23 package designed to meet the increasing system requirements found in today’s performance serial communication applications.

Features

  • Date rate options of 250kbps, 2.5Mbps and 20Mbps.
  • Tiny 6-pin TSOT23 package.
  • 3.3V ±5% supply operation.
  • Robust ESD protection ±15kV Human Body Model (bus pins) ±4kV Human Body Model (all other pins).
  • Short-circuit protection.
  • Thermal protection circuitry.
  • Hot swap glitch protection.
  • Extended -40°C to 125°C operating temperature range.
  • Low current shutdown mode (2uA max).
  • Lead-free (RoHS compliant.

📥 Download Datasheet

Datasheet preview – XR33195

Datasheet Details

Part number XR33195
Manufacturer MaxLinear
File Size 269.29 KB
Description TSOT23 RS-485/RS-422 Transmitters
Datasheet download datasheet XR33195 Datasheet

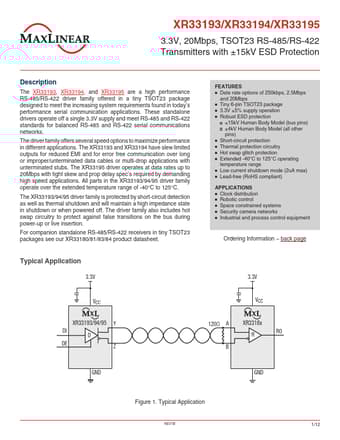

Additional preview pages of the XR33195 datasheet.

📁 Similar Datasheet

  • XR33195 - TSOT23 RS-485/RS-422 Transmitters (Exar)
  • XR33193 - TSOT23 RS-485/RS-422 Transmitters (Exar)
  • XR33194 - TSOT23 RS-485/RS-422 Transmitters (Exar)
  • XR33152 - TIA-485/TIA-422 Transceivers (Exar)
  • XR33155 - TIA-485/TIA-422 Transceivers (Exar)
  • XR33156 - TIA-485/TIA-422 Transceivers (Exar)
  • XR33158 - TIA-485/TIA-422 Transceivers (Exar)
  • XR33180 - TSOT23 RS-485/RS-422 Receivers (Exar)
  • XR33181 - TSOT23 RS-485/RS-422 Receivers (Exar)
  • XR33183 - TSOT23 RS-485/RS-422 Receivers (Exar)
Other Datasheets by MaxLinear
  • XR33193 - TSOT23 RS-485/RS-422 Transmitters
  • XR33194 - TSOT23 RS-485/RS-422 Transmitters
  • XR33152 - RS-485/RS-422 Transceivers
  • XR33155 - RS-485/RS-422 Transceivers
  • XR33156 - RS-485/RS-422 Transceivers
  • XR33158 - RS-485/RS-422 Transceivers
  • XR33180 - TSOT23 RS-485/RS-422 Receivers
  • XR33181 - TSOT23 RS-485/RS-422 Receivers

Full PDF Text Transcription

Click to expand full text
XR33193/XR33194/XR33195 3.3V, 20Mbps, TSOT23 RS-485/RS-422 Transmitters with ±15kV ESD Protection Description The XR33193, XR33194, and XR33195 are a high performance RS-485/RS-422 driver family offered in a tiny TSOT23 package designed to meet the increasing system requirements found in today’s performance serial communication applications. These standalone drivers operate off a single 3.3V supply and meet RS-485 and RS-422 standards for balanced RS-485 and RS-422 serial communications networks. The driver family offers several speed options to maximize performance in different applications. The XR33193 and XR33194 have slew limited outputs for reduced EMI and for error free communication over long or improper/unterminated data cables or multi-drop applications with unterminated stubs.
