DS1862A

XFP Laser Control and Digital Diagnostic IC

DS1862A Features

* Implements XFP MSA Requirements for Digital Diagnostics, Serial ID, and User Memory I2C-Compatible Serial Interface Automatic Power Control (APC) Extinction Ratio Control with Lookup Table DS1862A

* Seven Monitored Channels for Digital Diagnostics (Five Basic Plus Two Auxiliary)

DS1862A General Description

The DS1862A is a closed-loop laser-driver control IC with built-in digital diagnostics designed for XFP MSA. The laser control function incorporates automatic power control (APC) and allows extinction ratio control though a temperature-indexed lookup table (LUT). The DS1862A monitors up to seven ana.

DS1862A Datasheet (649.14 KB)

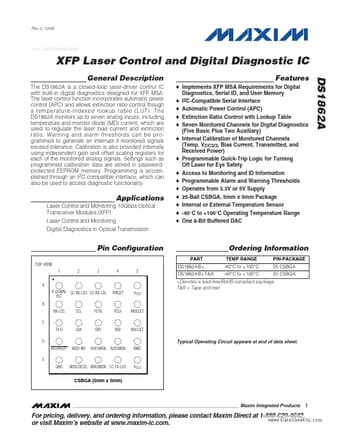

Preview of DS1862A PDF

Datasheet Details

Part number:

DS1862A

Manufacturer:

Maxim Integrated ↗ Products

File Size:

649.14 KB

Description:

Xfp laser control and digital diagnostic ic.
