DS1862

XFP Laser Control and Digital Diagnostic IC

DS1862 Features

* Implements XFP MSA Requirements for Digital Diagnostics, Serial ID, and User Memory

* I2C-Compatible Serial Interface

* Automatic Power Control (APC)

* Extinction Ratio Control with Look-Up Table

* Seven Monitored Channels for Digital Diagnostics (Five Basic

DS1862 General Description

The DS1862 is a closed-loop laser-driver control IC with built-in digital diagnostics designed for XFP MSA. The laser control function incorporates average power control (APC) and allows extinction ratio control though a temperature indexed look-up table (LUT). The DS1862 monitors up to seven analog.

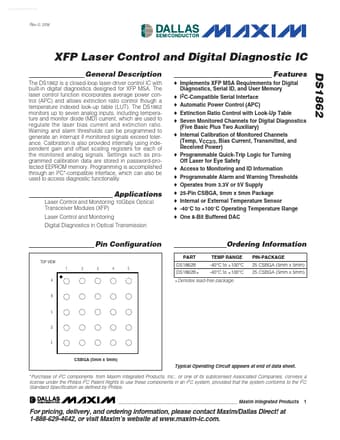

DS1862 Datasheet (560.13 KB)

Preview of DS1862 PDF

Datasheet Details

Part number:

DS1862

Manufacturer:

Maxim Integrated ↗ Products

File Size:

560.13 KB

Description:

Xfp laser control and digital diagnostic ic.
