DS1865

PON Triplexer Control and Monitoring Circuit

DS1865 Features

* o Meets GEPON, BPON, and GPON Timing Requirements for Burst-Mode Transmitters o Bias Current Control Provided by APC Loop with Tracking-Error Compensation o Modulation Current is Controlled by a Temperature-Indexed Lookup Table o Laser Power Leveling from -6dB to +0dB o Two 8-Bit Analog Outputs, One

DS1865 General Description

The DS1865 controls and monitors all the burst-mode transmitter and video receiver biasing functions for a passive optical network (PON) triplexer. It has an APC loop with tracking-error compensation that provides the reference for the laser driver bias current and a temperature-indexed lookup table.

DS1865 Datasheet (613.69 KB)

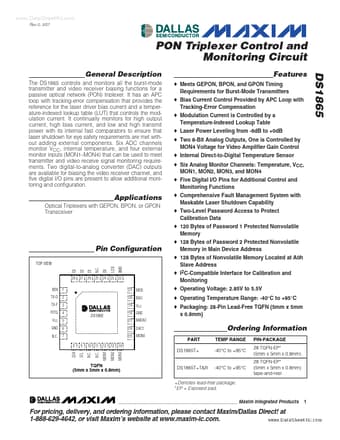

Preview of DS1865 PDF

Datasheet Details

Part number:

DS1865

Manufacturer:

Maxim Integrated ↗ Products

File Size:

613.69 KB

Description:

Pon triplexer control and monitoring circuit.
