DS1863

Burst Mode PON Controller

DS1863 Features

* o Meets BPON, GPON, and GEPON Timing Requirements for Burst-Mode Transceivers o Bias Current Control provided by APC Loop with Tracking Error Compensation o Modulation Current is Controlled by a Temperature-Indexed Lookup Table o Supports 0dB, -3dB, -6dB Power Leveling Settings with no Additional Ca

DS1863 General Description

The DS1863 controls and monitors all the burst-mode transmitter and video receiver biasing functions for a passive optical network (PON) triplexer. It has an APC loop with tracking-error compensation that provides the reference for the laser-driver’s bias current, and a temperature indexed lookup ta.

DS1863 Datasheet (622.35 KB)

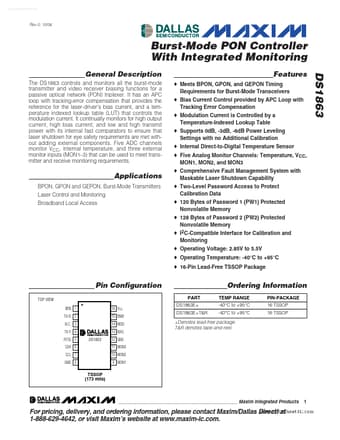

Preview of DS1863 PDF

Datasheet Details

Part number:

DS1863

Manufacturer:

Maxim Integrated ↗ Products

File Size:

622.35 KB

Description:

Burst mode pon controller.
