DS26518

single-chip 8-port framer and line interface unit (LIU) combination

DS26518 Features

* Eight Complete T1, E1, or J1 Long-Haul/ Short-Haul Transceivers (LIU Plus Framer) Independent T1, E1, or J1 Selections for Each Transceiver Fully Internal Impedance Match, No External Resistor Software-Selectable Transmit- and ReceiveSide Termination for 100Ω T1 Twisted Pair, 110Ω J1 Twisted Pair, 1

DS26518 General Description

The DS26518 is a single-chip 8-port framer and line interface unit (LIU) combination for T1, E1, and J1 applications. Each port is independently configurable, supporting both long-haul and short-haul lines. The 8-port SCT is software compatible with the DS26519 and nearly software compatible with th.

DS26518 Datasheet (2.52 MB)

Preview of DS26518 PDF

Datasheet Details

Part number:

DS26518

Manufacturer:

Maxim Integrated ↗ Products

File Size:

2.52 MB

Description:

Single-chip 8-port framer and line interface unit (liu) combination.

📁 Related Datasheet

DS26519 - single-chip 16-port framer and line interface unit (LIU) combination (Maxim Integrated Products)
DS26519 16-Port T1/E1/J1 Transceiver .maxim-ic. GENERAL DESCRIPTION The DS26519 is a single-chip 16-port framer and line interface unit (LIU) c.

DS26502 - T1/E1/J1/64KCC BITS Element (Maxim Integrated Products)
DS26502 T1/E1/J1/64KCC BITS Element .maxim-ic. GENERAL DESCRIPTION FEATURES The DS26502 is a building-integrated timing§ G.703 2048kHz Synchr.

DS26503 - T1/E1/J1 BITS Element (Dallas Semiconducotr)
DS26503 T1/E1/J1 BITS Element .maxim-ic. GENERAL DESCRIPTION The DS26503 is a building-integrated timingsupply (BITS) clock-recovery element. T.

DS26504 - T1/E1/J1/64KCC BITS Element (Maxim Integrated Products)
DS26504 T1/E1/J1/64KCC BITS Element .maxim-ic. Transmit and Receive T1 BOC SSM Messages with Receive Message Change of State and The DS26504 is .

DS26522 - Dual T1/E1/J1 Transceiver (Maxim Integrated Products)
.. DS26522 Dual T1/E1/J1 Transceiver .maxim-ic. GENERAL DESCRIPTION The DS26522 is a dual-channel framer and line interface u.

DS26524 - Quad T1/E1/J1 Transceiver (Maxim Integrated Products)
.. DS26524 Quad T1/E1/J1 Transceiver .maxim-ic. GENERAL DESCRIPTION The DS26524 is a single-chip 4-port framer and line inter.

DS26528 - Octal T1/E1/J1 Transceiver (Maxim Integrated Products)
.. DS26528 Octal T1/E1/J1 Transceiver .maxim-ic. GENERAL DESCRIPTION The DS26528 is a single-chip 8-port framer and line inte.

DS26556 - 4-Port Cell/Packet Over T1/E1/J1 Transceiver (Maxim Integrated Products)
DS26556 4-Port Cell/Packet Over T1/E1/J1 Transceiver .maxim-ic. GENERAL DESCRIPTION The DS26556 is a quad, software-selectable T1, E1, or J1 tr.

TAGS

DS26518 single-chip 8-port framer and line interface unit LIU combination Maxim Integrated Products

Image Gallery

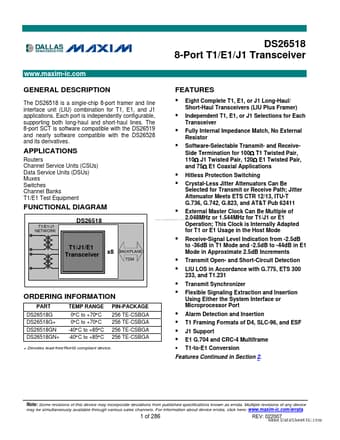

DS26518 Datasheet Preview Page 2 DS26518 Datasheet Preview Page 3
