DS26524

Quad T1/E1/J1 Transceiver

DS26524 Features

* Four Complete T1, E1, or J1 Long-Haul/ShortHaul Transceivers (LIU plus Framer) Independent T1, E1, or J1 Selections for Each Transceiver Internal Software-Selectable Transmit- and Receive-Side Termination for 100Ω T1 Twisted Pair, 110Ω J1 Twisted Pair, 120Ω E1 Twisted Pair, and 75Ω E1 Coaxial Applic

DS26524 Datasheet (1.67 MB)

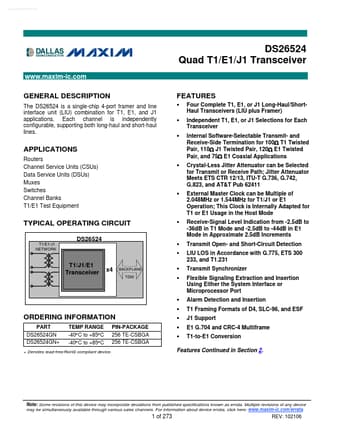

Preview of DS26524 PDF

Datasheet Details

Part number:

DS26524

Manufacturer:

Maxim Integrated ↗ Products

File Size:

1.67 MB

Description:

Quad t1/e1/j1 transceiver.
