DS26519 - single-chip 16-port framer and line interface unit (LIU) combination

Product Overview

Maxim Integrated Products

Part number	DS26519
Manufacturer	Maxim Integrated Products
File Size	2.93 MB
Description	single-chip 16-port framer and line interface unit (LIU) combination
Datasheet	DS26519 Datasheet

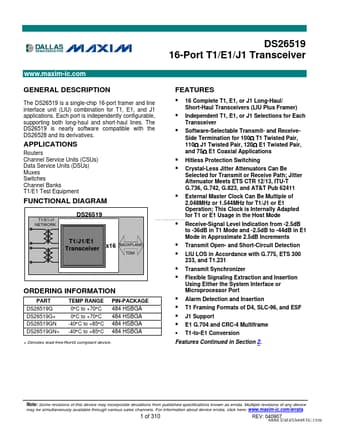

Additional preview pages of the DS26519 datasheet.

The DS26519 is a single-chip 16-port framer and line interface unit (LIU) combination for T1, E1, and J1 applications.

16 Complete T1, E1, or J1 Long-Haul/ Short-Haul Transceivers (LIU Plus Framer) Independent T1, E1, or J1 Selections for Each Transceiver Software-Selectable Transmit- and ReceiveSide Termination for 100Ω T1 Twisted Pair, 110Ω J1 Twisted Pair, 120Ω E1 Twisted Pair, and 75Ω E1 Coaxial.
