ICL7650 - Chopper-Stabilized Op Amps

ICL7650 Description

19-0960; Rev 2; 1/00 Chopper-Stabilized Op Amps General .
Maxim’s ICL7650/ICL7653 are chopper-stabilized amplifiers, ideal for low-level signal processing applications.

ICL7650 Features

* o ICL7650/53 are Improved Second Sources to ICL7650B/53B o Lower Supply Current: 2mA o Low Offset Voltage: 1µV o No Offset Voltage Trimming Needed o High-Gain CMRR and PSRR: 120dB min o Lower Offset Drift with Time and Temperature o Extended Common-Mode Voltage Range o Low DC Input Bias Current: 10p

ICL7650 Applications

* Featuring high performance and versatility, these devices combine low input offset voltage, low input bias current, wide bandwidth, and exceptionally low drift over time and temperature. Low offset is achieved through a nulling scheme that provides continuous error correction. A nulling amplifier a

📥 Download Datasheet

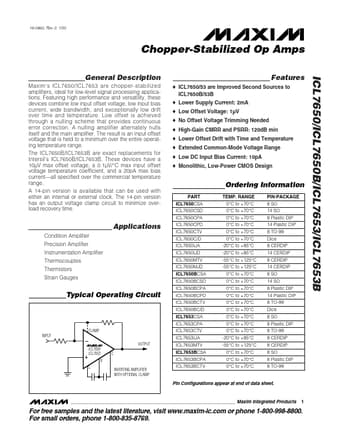

Preview of ICL7650 PDF
datasheet Preview Page 2 datasheet Preview Page 3
