ICL7650B

(ICL7650x / ICL7653x) Chopper-Stabilized Op Amps

ICL7650B Features

* o ICL7650/53 are Improved Second Sources to ICL7650B/53B o Lower Supply Current: 2mA o Low Offset Voltage: 1µV o No Offset Voltage Trimming Needed o High-Gain CMRR and PSRR: 120dB min o Lower Offset Drift with Time and Temperature o Extended Common-Mode Voltage Range o Low DC Input Bias Current: 10p

ICL7650B General Description

Maxim’s ICL7650/ICL7653 are chopper-stabilized amplifiers, ideal for low-level signal processing applications. Featuring high performance and versatility, these devices combine low input offset voltage, low input bias current, wide bandwidth, and exceptionally low drift over time and temperature. Lo.

ICL7650B Datasheet (162.02 KB)

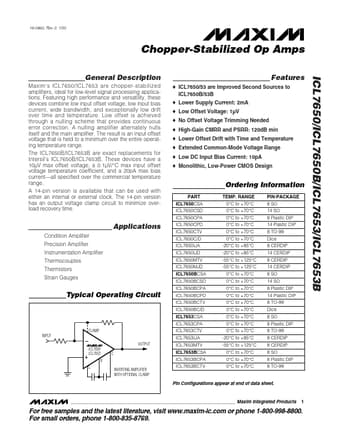

Preview of ICL7650B PDF

Datasheet Details

Part number:

ICL7650B

Manufacturer:

Maxim Integrated ↗ Products

File Size:

162.02 KB

Description:

(icl7650x / icl7653x) chopper-stabilized op amps.
