ICL7653B, ICL7650, (ICL7650x / ICL7653x) Chopper-Stabilized Op Amps

19-0960; Rev 2; 1/00 Chopper-Stabilized Op Amps General .
Maxim’s ICL7650/ICL7653 are chopper-stabilized amplifiers, ideal for low-level signal processing applications.

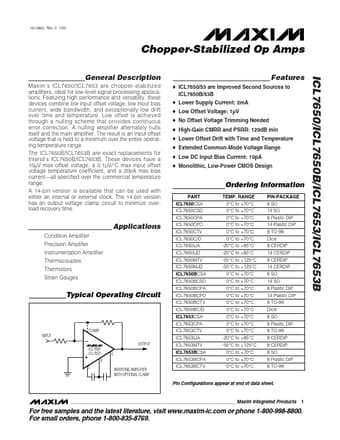

datasheet Preview Page 1 from Datasheet4u.com

ICL7650_MaximIntegratedProducts.pdf

ICL7653B Datasheet Preview — This datasheet PDF includes multiple part numbers: ICL7653B, ICL7650. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ICL7653B, ICL7650

Manufacturer:

Maxim Integrated ↗ Products

File Size:

162.02 KB

Description:

(ICL7650x / ICL7653x) Chopper-Stabilized Op Amps

Note:

This datasheet PDF includes multiple part numbers: ICL7653B, ICL7650.
Please refer to the document for exact specifications by model.

Features

* o ICL7650/53 are Improved Second Sources to ICL7650B/53B o Lower Supply Current: 2mA o Low Offset Voltage: 1µV o No Offset Voltage Trimming Needed o High-Gain CMRR and PSRR: 120dB min o Lower Offset Drift with Time and Temperature o Extended Common-Mode Voltage Range o Low DC Input Bias Current: 10p

Applications

* Featuring high performance and versatility, these devices combine low input offset voltage, low input bias current, wide bandwidth, and exceptionally low drift over time and temperature. Low offset is achieved through a nulling scheme that provides continuous error correction. A nulling amplifier a
