MAX11203

Delta- Sigma ADCs

MAX11203 Features

* MAX11203/MAX11213 Applications Sensor Measurement (Temperature and Pressure) Portable Instrumentation Battery Applications Weigh Scales Ordering Information PART MAX11203EEE+ MAX11213EEE+ TEMP RANGE -40°C to +85°C -40°C to +85°C PIN-PACKAGE 16 QSOP 16 QSOP +Denotes a lead(Pb)-free/RoHS-compliant

MAX11203 General Description

The MAX11203/MAX11213 are ultra-low-power (< 300FA active current), high-resolution, serial-output ADCs. These devices provide the highest resolution per unit power in the industry, and are optimized for applications that require very high dynamic range with low power, such as sensors on a 4mA to 20.

MAX11203 Datasheet (459.00 KB)

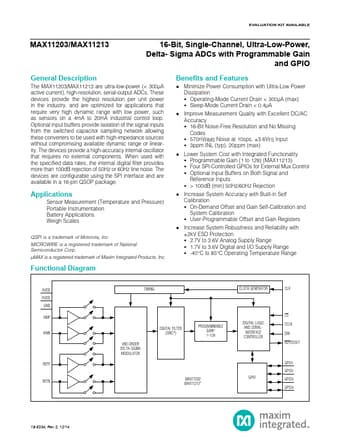

Preview of MAX11203 PDF

Datasheet Details

Part number:

MAX11203

Manufacturer:

Maxim Integrated ↗ Products

File Size:

459.00 KB

Description:

Delta- sigma adcs.
www.DataSheet4U.com 19-5334; Rev 0; 6/10 16-Bit, Single-Channel, Ultra-Low-Power, DeltaSigma ADCs with Programmable Gain and GPIO General Descriptio.
