MAX11253

Delta-Sigma ADC

Maxim

MAX11253 Features

* High Resolution for Industrial Applications that Require a Wide Dynamic Range

* 98dB SNR at 1000sps

* Longer Battery Life for Portable Applications

* 2.2mA Operating Mode Current

* 1μA Sleep Current

* Single or Split Analog Supplies Provide Inp

MAX11253 General Description

The MAX11253 is a 6-channel, 16-bit delta-sigma ADC that achieves exceptional performance while consuming very low power. Sample rates up to 64ksps allow precision DC measurements. The MAX11253 communicates via a SPI serial interface and is available in a small (5mm x 5mm) TQFN package. The MAX11253.

MAX11253 Datasheet (788.52 KB)

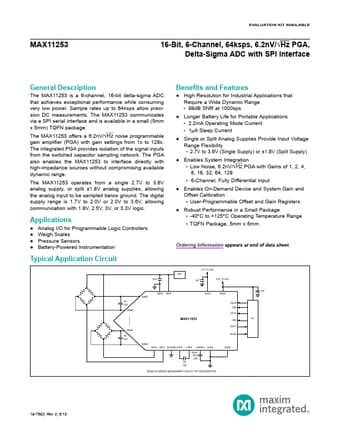

MAX11253 Datasheet Preview — Preview of MAX11253 PDF

Datasheet Details

Part number:

MAX11253

Manufacturer:

Maxim

File Size:

788.52 KB

Description:

Delta-sigma adc.
