MAX1122 - 170Msps Analog-to-Digital Converter

Maxim

📥 Download Datasheet

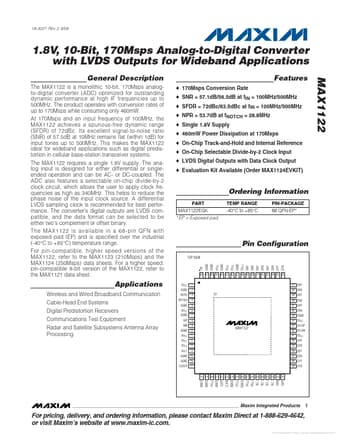

MAX1122 Datasheet Preview — Preview of MAX1122 PDF

Datasheet Details

Part number: MAX1122
Manufacturer: Maxim
File Size: 229.06 KB
Datasheet: MAX1122_Maxim.pdf
Description: 170Msps Analog-to-Digital Converter

MAX1122 Product details

Description

The MAX1122 is a monolithic 10-bit, 170Msps analogto-digital converter (ADC) optimized for outstanding dynamic performance at high IF frequencies up to 500MHz.

Features

a selectable on-chip divide-by-2 clock circuit, which allows the user to apply clock frequencies as high as 340MHz. This helps to reduce the phase noise of the input clock source. A differential LVDS sampling clock is recommended for best performance. The converter’s digital outputs are LVDS compatible, and the data format can be selected to be either two’s complement or offset binary. The MAX1122 is available in a 68-pin QFN with exposed pad (EP) and is specified over the industrial (-40°C to +.
