MAX1125

8-Bit / 300Msps Flash ADC

MAX1125 Features

* o o o o o o Metastable Errors Reduced to 1LSB 10pF Input Capacitance 210MHz Input Bandwidth 300Msps Conversion Rate 2.2W Typical Power Dissipation Single -5.2V Supply _______________General Description The MAX1125 is a monolithic, flash analog-to-digital converter (ADC) capable of digitizing a 2V a

MAX1125 General Description

The MAX1125 is a monolithic, flash analog-to-digital converter (ADC) capable of digitizing a 2V analog input signal into 8-bit digital words at a typical 300Msps update rate. For most applications, no external sample-and-hold is required for accurate conversion due to the device's narrow aperture ti.

MAX1125 Datasheet (114.00 KB)

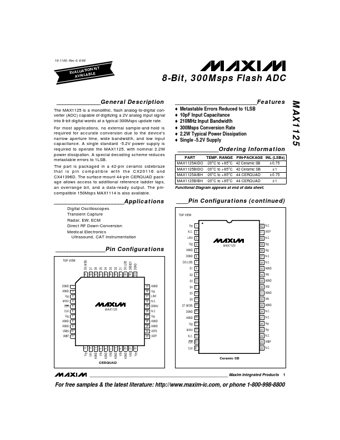

Preview of MAX1125 PDF
