MAX1121

250Msps Analog-to-Digital Converter

MAX1121 Features

* a selectable on-chip divide-by-2 clock circuit, which allows the user to apply clock frequencies as high as 500MHz. This helps to reduce the phase noise of the input clock source. A differential LVDS sampling clock is recommended for best performance. The converter’s digital outputs are LVDS compati

MAX1121 General Description

The MAX1121 is a monolithic 8-bit, 250Msps analog-todigital converter (ADC) optimized for outstanding dynamic performance at high IF frequencies up to 500MHz. The product operates with conversion rates of up to 250Msps while consuming only 477mW. At 250Msps and an input frequency of 100MHz, the MAX1.

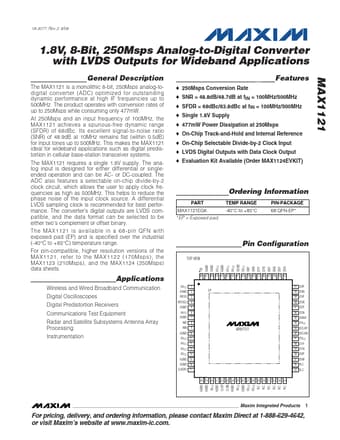

MAX1121 Datasheet (274.33 KB)

Preview of MAX1121 PDF

Datasheet Details

Part number:

MAX1121

Manufacturer:

Maxim Integrated ↗ Products

File Size:

274.33 KB

Description:

250msps analog-to-digital converter.
19-3077; Rev 1; 2/04 www.DataSheet4U.com 1.8V, 8-Bit, 250Msps Analog-to-Digital Converter with LVDS Outputs for Wideband Applications General Descri.
