MAX12528 Dual 80Msps 12-Bit IF/Baseband ADC

📥 Download Datasheet  Datasheet Preview Page 1

Description

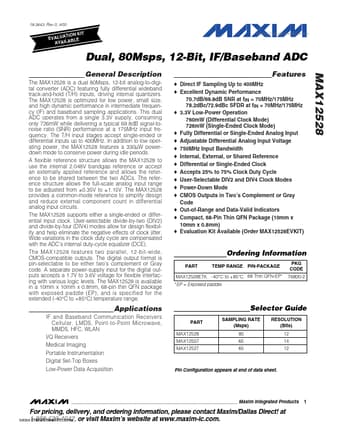

19-3643; Rev 0; 4/05 KIT ATION EVALU E L B AVAILA www.DataSheet4U.com Dual, 80Msps, 12-Bit, IF/Baseband ADC General .
The MAX12528 is a dual 80Msps, 12-bit analog-to-digital converter (ADC) featuring fully differential wideband track-and-hold (T/H) inputs, driving int.

📥 Download Datasheet

Preview of MAX12528 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* a 330µW powerdown mode to conserve power during idle periods. A flexible reference structure allows the MAX12528 to use the internal 2.048V bandgap reference or accept an externally applied reference and allows the reference to be shared between the two ADCs. The reference structure allows the full-

Applications

* This dual ADC operates from a single 3.3V supply, consuming only 726mW while delivering a typical 69.8dB signal-tonoise ratio (SNR) performance at a 175MHz input frequency. The T/H input stages accept single-ended or differential inputs up to 400MHz. In addition to low operating power, the MAX12528
