MAX125 - 2x4-Channel / Simultaneous-Sampling 14-Bit DAS

MAX125 Description

www.DataSheet4U.com 19-1319; Rev 2; 6/07 KIT ATION EVALU E L B A AVAIL 2x4-Channel, Simultaneous-Sampling 14-Bit DAS General .
Features o Four Simultaneous-Sampling T/H Amplifiers with Two Multiplexed Inputs (eight single-ended inputs total) o 3µs Conversion Time per Channel o.

MAX125 Features

* o Four Simultaneous-Sampling T/H Amplifiers with Two Multiplexed Inputs (eight single-ended inputs total) o 3µs Conversion Time per Channel o Throughput: 250ksps (1 channel) 142ksps (2 channels) 100ksps (3 channels) 76ksps (4 channels) o Input Range: ±5V (MAX125) ±2.5V (MAX126) o Fault-Protected Inp

MAX125 Applications

* Multiphase Motor Control Power-Grid Synchronization Power-Factor Monitoring Digital Signal Processing Vibration and Waveform Analysis Typical Operating Circuit appears at end of data sheet. Pin Configuration appears at end of data sheet. _____________________________________________________________

📥 Download Datasheet

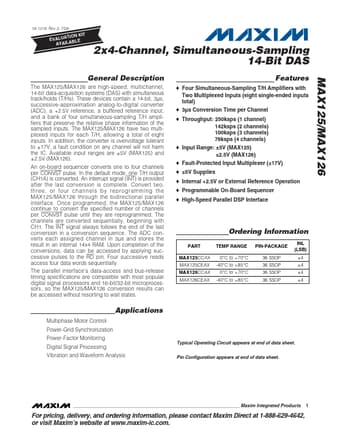

Preview of MAX125 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX125
Manufacturer
Maxim
File Size
161.19 KB
Datasheet
MAX125_MaximIntegratedProducts.pdf
Description
2x4-Channel / Simultaneous-Sampling 14-Bit DAS
