MAX1254

12-Bit System Monitors

MAX1254 Features

* o Monitor 10 Signals Without Processor Intervention o Eight External Channels Programmable as Temperature or Voltage Monitors o Intelligent Circuitry for Reliable Autonomous Measurement Programmable Digital Averaging Filter Programmable Fault Counter o Precision Measurements 12-Bit Resolution ±1 LSB

MAX1254 General Description

The MAX1253/MAX1254 are stand-alone, 10-channel (8 external, 2 internal) 12-bit system monitor ADCs with internal reference. A programmable single-ended/differential mux accepts voltage and remote-diode temperature-sensor inputs. These devices independently monitor the input channels without micropr.

MAX1254 Datasheet (439.38 KB)

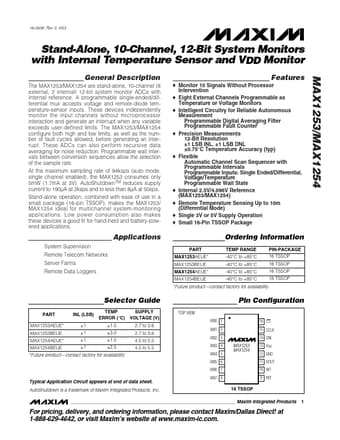

Preview of MAX1254 PDF

Datasheet Details

Part number:

MAX1254

Manufacturer:

Maxim

File Size:

439.38 KB

Description:

12-bit system monitors.
