MAX13443E, MAX13442E, Fail-Safe RS-485/J1708 Transceivers

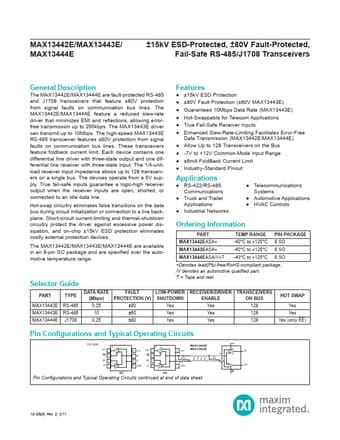

www.DataSheet.co.kr 19-3898; Rev 3; 3/11 ±15kV ESD-Protected, ±80V Fault-Protected, Fail-Safe RS-485/J1708 Transceivers General .
The MAX13442E/MAX13444E are fault-protected RS-485 and J1708 transceivers that feature ±80V protection from signal faults on communication bus lines.

datasheet Preview Page 1 from Datasheet4u.com

MAX13442E_MaximIntegratedProducts.pdf

MAX13443E Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX13443E, MAX13442E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAX13443E, MAX13442E

Manufacturer:

Maxim Integrated ↗ Products

File Size:

482.51 KB

Description:

Fail-Safe RS-485/J1708 Transceivers

Note:

This datasheet PDF includes multiple part numbers: MAX13443E, MAX13442E.
Please refer to the document for exact specifications by model.

Features

* ±60V protection from signal faults on communication bus lines. These transceivers feature foldback current limit. Each device contains one differential line driver with three-state output and one differential line receiver with three-state input. The 1/4-unitload receiver input impedance allows up t

Applications

* True Fail-Safe Receiver Inputs
* Enhanced Slew-Rate-Limiting Facilitates Error-Free Data Transmission (MAX13442E/MAX13444E)
* Allow Up to 128 Transceivers on the Bus
* -7V to +12V Common-Mode Input Range
* ±6mA FoldBack Current Limit
* Industry-Stand
