MAX14501 - Hi-Speed USB-to-SD Card Readers

Product Overview

Maxim Integrated Products

📥 Download Datasheet

MAX14501 Hi-Speed USB-to-SD Card Readers by Maxim Integrated Products - Datasheet Preview — Datasheet preview – MAX14501

Datasheet Details

Part number	MAX14501
Manufacturer	Maxim Integrated Products
File Size	508.14 KB
Description	Hi-Speed USB-to-SD Card Readers
Datasheet	MAX14501 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX14501, MAX14500. Please refer to the document for exact specifications by model.

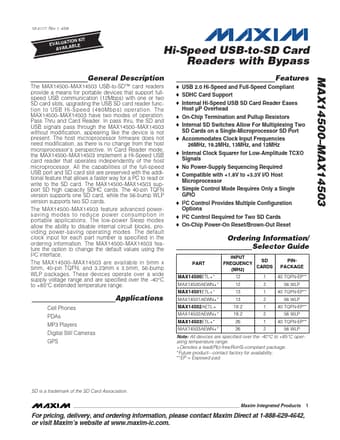

Additional preview pages of the MAX14501 datasheet.

Product details

Features

USB 2.0 Hi-Speed and Full-Speed Compliant.
SDHC Card Support.
Internal Hi-Speed USB SD Card Reader Eases Host µP Overhead.
On-Chip Termination and Pullup Resistors.
Internal SD Switches Allow For Multiplexing Two SD Cards on a Single-Microprocessor SD Port.
Accommodates Clock Input Frequencies 26MHz, 19.2MHz, 13MHz, and 12MHz.
Internal Clock Squarer for Low-Amplitude TCXO Signals.
No Power-Supply Sequencing Required.
