MAX14503, MAX14500 Hi-Speed USB-to-SD Card Readers

Maxim Integrated Products

Description

www.DataSheet.co.kr 19-4117; Rev 1; 4/09 KIT ATION EVALU E L B A AVAIL Hi-Speed USB-to-SD Card Readers with Bypass General .
Features. USB 2. SDHC Card Support. Internal Hi-Speed USB SD Card Reader Eases Host µP.

📥 Download Datasheet

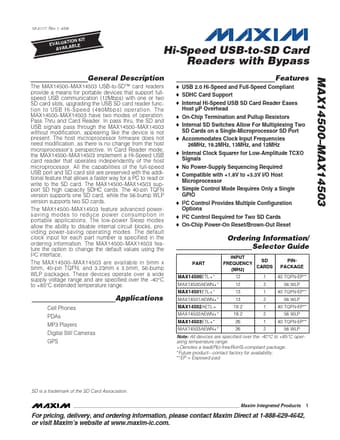

MAX14503 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX14503, MAX14500. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MAX14503, MAX14500
Manufacturer: Maxim Integrated ↗ Products
File Size: 508.14 KB
Datasheet: MAX14500_MaximIntegratedProducts.pdf
Description: Hi-Speed USB-to-SD Card Readers
Note: This datasheet PDF includes multiple part numbers: MAX14503, MAX14500.
Please refer to the document for exact specifications by model.

Features

* USB 2.0 Hi-Speed and Full-Speed Compliant
* SDHC Card Support
* Internal Hi-Speed USB SD Card Reader Eases Host µP Overhead
* On-Chip Termination and Pullup Resistors
* Internal SD Switches Allow For Multiplexing Two SD Cards on a Single-Microprocessor SD Po

Applications

* The low-power Sleep modes allow the ability to disable internal circuit blocks, providing power-saving operating modes. The default clock input for each part number is specified in the ordering information. The MAX14500
