MAX14505 Dual SPDT Negative Rail Analog Switches

MAX14505 Features

* o Distortion-Free Negative Signal Throughput from -VCC to +VCC o Internal Shunt Switches Reduce Click/Pop (MAX14505/MAX14505A) o Low On-Resistance 0.36Ω (typ) o 1mΩ (typ) On-Resistance Flatness o COM High Impedance for EN = High o Low 0.2µA (max) Shutdown Current (MAX14505A/MAX14506) o +2.3V to +5.5

MAX14504-MaximIntegrated.pdf

This datasheet PDF includes multiple part numbers: MAX14505, MAX14504. Please refer to the document for exact specifications by model.

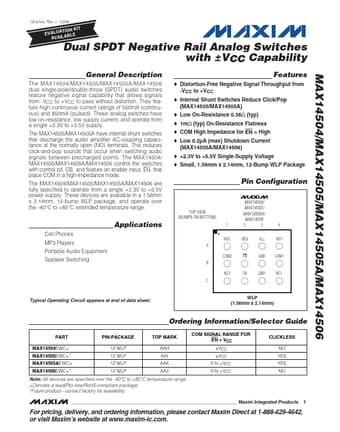

MAX14505 Datasheet Preview Page 2 MAX14505 Datasheet Preview Page 3
