MAX17598 - (MAX17598 / MAX17599) Active Clamp Current-Mode PWM Controllers

Description

The MAX17598/MAX17599 low IQ, active clamp currentmode PWM controllers contain all the control circuitry required for the design of wide-input isolated/non-isolated forward-converter industrial power supplies.

Features

  • S Active Clamp, Peak Current-Mode Forward PWM Controller S 20FA Startup Current in UVLO S 4.5V to 36V Input-Supply Operating Range (MAX17599) S Programmable Input Undervoltage Lockout S Programmable Input Overvoltage Protection S Programmable 100kHz to 1MHz Switching Frequency S Switching Frequency Synchronization S Programmable Frequency Dithering for Low EMI Spread-Spectrum Operation S Programmable Dead Time S Adjustable Soft-Start S Programmable Slope Compensation S Fast Cycle-by-.

📥 Download Datasheet

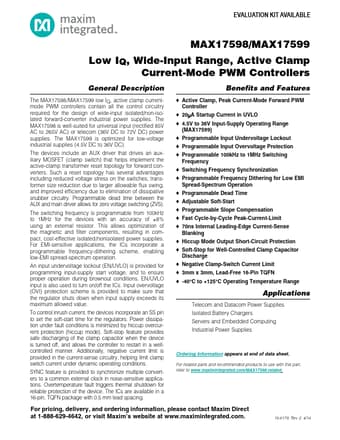

Datasheet preview – MAX17598

📁 Similar Datasheet

  • MAX1759 - Buck/Boost Regulating Charge Pump (Maxim)
  • MAX17501 - Synchronous Step-Down DC-DC Converter (Maxim)
  • MAX17502 - Synchronous Step-Down DC-DC Converter (Maxim)
  • MAX17503 - Synchronous Step-Down DC-DC Converter (Maxim)
  • MAX17505 - 1.7A Synchronous Step-Down DC-DC Converter (Maxim Integrated)
  • MAX17506 - Synchronous Step-Down DC-DC Converter (Maxim)
  • MAX17509 - Synchronous Step-Down DC-DC Converter (Maxim Integrated)
  • MAX17510 - Low-Voltage DDR Linear Regulators (Maxim Integrated)
  • MAX17511 - 3-/2-/1-Phase + 2-/1-Phase Quick-PWM Controllers (Maxim Integrated)
  • MAX17511C - 3-/2-/1-Phase + 2-/1-Phase Quick-PWM Controllers (Maxim Integrated)
Other Datasheets by Maxim Integrated Products
  • MAX17595 - (MAX17595 - MAX17597) Peak-Current-Mode Controllers
  • MAX17596 - (MAX17595 - MAX17597) Peak-Current-Mode Controllers
  • MAX17597 - (MAX17595 - MAX17597) Peak-Current-Mode Controllers
  • MAX17599 - (MAX17598 / MAX17599) Active Clamp Current-Mode PWM Controllers
  • MAX17500 - Current-Mode PWM Controllers
  • MAX17528 - 1-Phase Quick-PWM Intel IMVP-6.5/GMCH Controllers
  • MAX17530 - Synchronous Step-Down DC-DC Converter
  • MAX17535 - High-Frequency Low-Cost SMBus Chargers

Full PDF Text Transcription

Click to expand full text
www.DataSheet.co.kr 19-6179; Rev 0; 1/12 EVALUATION KIT AVAILABLE MAX17598/MAX17599 Low IQ, Wide-Input Range, Active Clamp Current-Mode PWM Controllers General Description The MAX17598/MAX17599 low IQ, active clamp currentmode PWM controllers contain all the control circuitry required for the design of wide-input isolated/non-isolated forward-converter industrial power supplies. The MAX17598 is well-suited for universal input (rectified 85V AC to 265V AC) or telecom (36V DC to 72V DC) power supplies. The MAX17599 is optimized for low-voltage industrial supplies (4.5V DC to 36V DC). The devices include an AUX driver that drives an auxiliary MOSFET (clamp switch) that helps implement the active-clamp transformer reset topology for forward converters.
