MAX19997A - 1800MHz to 2900MHz Downconversion Mixer

Product Overview

Maxim Integrated Products

Datasheet Details

Part number	MAX19997A
Manufacturer	Maxim Integrated Products
File Size	617.33 KB
Description	1800MHz to 2900MHz Downconversion Mixer
Datasheet	MAX19997A Datasheet

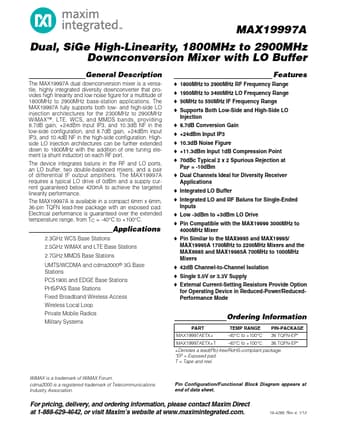

Additional preview pages of the MAX19997A datasheet.

Product details

Description

The MAX19997A dual downconversion mixer is a versatile, highly integrated diversity downconverter that provides high linearity and low noise figure for a multitude of 1800MHz to 2900MHz base-station applications.

Features

o 1800MHz to 2900MHz RF Frequency Range o 1950MHz to 3400MHz LO Frequency Range o 50MHz to 500MHz IF Frequency Range o Supports Both Low-Side and High-Side LO Injection o 8.7dB Conversion Gain o +24dBm Input IP3 o 10.3dB Noise Figure o +11.3dBm Input 1dB Compression Point o 70dBc Typical 2 x 2 Spurious Rejection at PRF = -10dBm o Dual Channels Ideal for Diversity Receiver.
