MAX2624, MAX2623 - (MAX2622 - MAX2624) Monolithic Voltage-Controlled Oscillators

MAX2624 Description

19-1528; Rev 1; 5/00 NUAL KIT MA ATION EET H S A EVALU T WS DA FOLLO Monolithic Voltage-Controlled Oscillators General .
Features o Fully Monolithic o Guaranteed Performance o On-Chip 50Ω Output Match o Wide Choice of Frequencies 855MHz to 881MHz (MAX2622) 885MHz to 950M.

MAX2624 Features

* o Fully Monolithic o Guaranteed Performance o On-Chip 50Ω Output Match o Wide Choice of Frequencies 855MHz to 881MHz (MAX2622) 885MHz to 950MHz (MAX2623) 947MHz to 998MHz (MAX2624) o +2.7V to +5.5V Single-Supply Operation o Low-Current Shutdown Mode o Smaller than Modules (8-Pin µMAX Package) MAX26

MAX2624 Applications

* 866MHz to 868MHz European ISM Band (MAX2622) DECT 1/2 Frequency LO (MAX2623) 902MHz to 928MHz ISM Band, ±10.7MHz IF (MAX2623) 902MHz to 928MHz ISM Band, 45MHz to 70MHz IF (MAX2624) PART MAX2622EUA MAX2623EUA MAX2624EUA Ordering Information TEMP. RANGE -40°C to +85°C -40°C to +85°C -40°C to +85°C PI

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX2624, MAX2623. Please refer to the document for exact specifications by model.

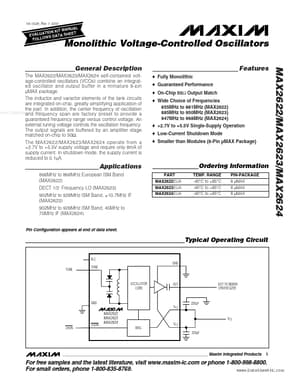

datasheet Preview Page 2 datasheet Preview Page 3
