MAX2634 - 315MHz/433MHz Low-Noise Amplifier

Datasheet Summary

Description

The MAX2634 low-noise amplifier (LNA) with low-power shutdown mode is optimized for 315MHz and 433.92MHz automotive remote keyless entry (RKE) applications.

Features

  • o Optimized for 308MHz, 315MHz, 418MHz, and 433.92MHz o 2.2V to 5.5V Supply Voltage Range o Low Operating Supply Current 2.5mA (typ), 4mA (max) o Logic-Controlled 1µA (max) Shutdown o Typical Performance at 315MHz 1.25dB Noise Figure -16dBm Input IP3 15.5dB Power Gain o Automotive Temperature Range -40°C to +125°C o ESD Rating of ±2.5kV (HBM) on All Pins o AEC-Q100 Qualification General.

📥 Download Datasheet

Datasheet preview – MAX2634

Datasheet Details

Part number MAX2634
Manufacturer Maxim Integrated Products
File Size 398.64 KB
Description 315MHz/433MHz Low-Noise Amplifier
Datasheet download datasheet MAX2634 Datasheet

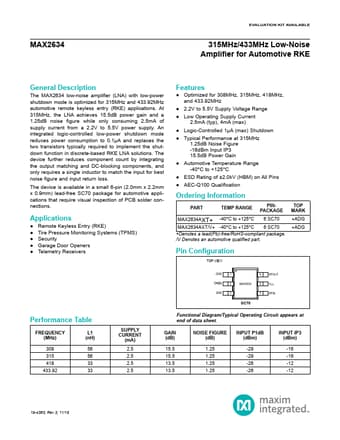

Additional preview pages of the MAX2634 datasheet.

📁 Similar Datasheet

  • MAX263 - Pin Programmable Universal and Bandpass Filters (Maxim Integrated)
  • MAX2630 - General-Purpose Amplifiers (Maxim)
  • MAX2631 - General-Purpose Amplifiers (Maxim Integrated)
  • MAX2632 - General-Purpose Amplifiers (Maxim Integrated)
  • MAX2633 - General-Purpose Amplifiers (Maxim Integrated)
  • MAX260 - Microprocessor Programmable Universal Active Filters (Maxim Integrated)
  • MAX2601 - 1W RF Power Transistors (Maxim)
  • MAX2602 - 1W RF Power Transistors (Maxim)
  • MAX2605 - Integrated IF VCOs (Maxim)
  • MAX2606 - Integrated IF VCOs (Maxim)
Other Datasheets by Maxim Integrated Products
  • MAX2622 - Monolithic Voltage-Controlled Oscillators
  • MAX2623 - Monolithic Voltage-Controlled Oscillators
  • MAX2624 - (MAX2622 - MAX2624) Monolithic Voltage-Controlled Oscillators
  • MAX2645 - SiGe Low-Noise Amplifier/PA Predriver
  • MAX2657 - (MAX2657 / MAX2658) GPS/GNSS Low-Noise Amplifiers
  • MAX2658 - (MAX2657 / MAX2658) GPS/GNSS Low-Noise Amplifiers
  • MAX2664 - VHF/UHF Low-Noise Amplifiers
  • MAX2665 - VHF/UHF Low-Noise Amplifiers

Full PDF Text Transcription

Click to expand full text
19-4383; Rev 1; 3/09 KIT ATION EVALU E L B AVAILA 315MHz/433MHz Low-Noise Amplifier for Automotive RKE Features o Optimized for 308MHz, 315MHz, 418MHz, and 433.92MHz o 2.2V to 5.5V Supply Voltage Range o Low Operating Supply Current 2.5mA (typ), 4mA (max) o Logic-Controlled 1µA (max) Shutdown o Typical Performance at 315MHz 1.25dB Noise Figure -16dBm Input IP3 15.5dB Power Gain o Automotive Temperature Range -40°C to +125°C o ESD Rating of ±2.5kV (HBM) on All Pins o AEC-Q100 Qualification General Description The MAX2634 low-noise amplifier (LNA) with low-power shutdown mode is optimized for 315MHz and 433.92MHz automotive remote keyless entry (RKE) applications. At 315MHz, the LNA achieves 15.5dB power gain and a 1.25dB noise figure while only consuming 2.5mA of supply current from a 2.
