MAX2630 - General-Purpose Amplifiers

MAX2630 Description

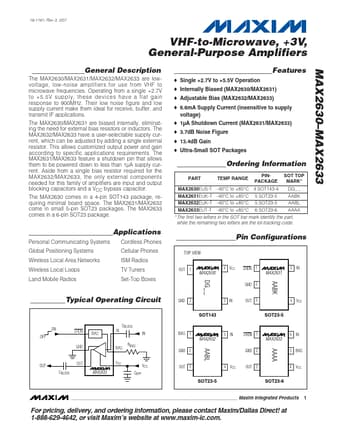

19-1181; Rev 3; 2/07 MAX2630 *MAX2633 VHF-to-Microwave, +3V, General-Purpose Amplifiers _______________General .
The MAX2630/MAX2631/MAX2632/MAX2633 are lowvoltage, low-noise amplifiers for use from VHF to microwave frequencies.

MAX2630 Features

* Single +2.7V to +5.5V Operation
* Internally Biased (MAX2630/MAX2631)
* Adjustable Bias (MAX2632/MAX2633)
* 6.6mA Supply Current (insensitive to supply voltage)
* 1µA Shutdown Current (MAX2631/MAX2633)
* 3.7dB Noise Figure
* 13.4dB Gain

MAX2630 Applications

* The MAX2630/MAX2631 are biased internally, eliminating the need for external bias resistors or inductors. The MAX2632/MAX2633 have a user-selectable supply current, which can be adjusted by adding a single external resistor. This allows customized output power and gain according to specific applica
