MAX2633, MAX2630 - General-Purpose Amplifiers

MAX2633 Description

19-1181; Rev 3; 2/07 MAX2630 *MAX2633 VHF-to-Microwave, +3V, General-Purpose Amplifiers _______________General .
The MAX2630/MAX2631/MAX2632/MAX2633 are lowvoltage, low-noise amplifiers for use from VHF to microwave frequencies.

MAX2633 Applications

* The MAX2630/MAX2631 are biased internally, eliminating the need for external bias resistors or inductors. The MAX2632/MAX2633 have a user-selectable supply current, which can be adjusted by adding a single external resistor. This allows customized output power and gain according to specific applica

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX2633, MAX2630. Please refer to the document for exact specifications by model.

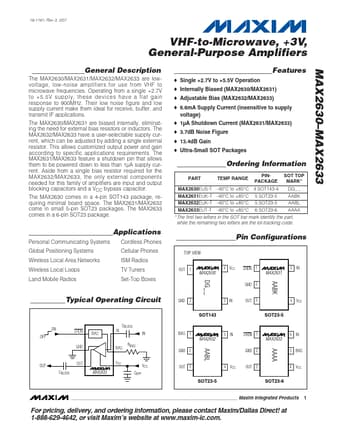

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX2633, MAX2630
Manufacturer
Maxim Integrated ↗
File Size
253.51 KB
Datasheet
MAX2630_MaximIntegratedProducts.pdf
Description
General-Purpose Amplifiers
Note
This datasheet PDF includes multiple part numbers: MAX2633, MAX2630.
Please refer to the document for exact specifications by model.
