MAX3407 - (MAX3406 - MAX3408) Switchable Termination Networks

This page provides the datasheet information for the MAX3407, a member of the MAX3406 (MAX3406 - MAX3408) Switchable Termination Networks family.

Datasheet Summary

Description

The MAX3406/MAX3407/MAX3408 are general-purpose line-terminating networks designed to change the termination value of a line, depending on the state of a digital control line, allowing the connection to a coaxial cable or a twisted pair wire.

These devices are switchable between 75Ω, 100Ω, and 120Ω.

Features

  • MAX3406/MAX3407/MAX3408.

📥 Download Datasheet

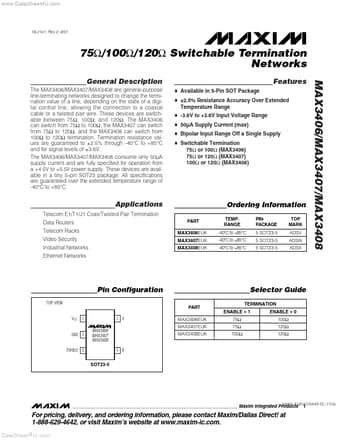

Datasheet preview – MAX3407

Datasheet Details

Part number MAX3407
Manufacturer Maxim Integrated Products
File Size 267.94 KB
Description (MAX3406 - MAX3408) Switchable Termination Networks
Datasheet download datasheet MAX3407 Datasheet
Additional preview pages of the MAX3407 datasheet.

📁 Similar Datasheet

  • MAX3408 - 75/100/120 Switchable Termination Networks (Maxim)
  • MAX3430 - 80V Fault-Protected / Fail-Safe / 1/4-Unit Load / #.3V RS-485 Transceiver (Maxim)
  • MAX34408 - SMBus Dual/Quad Current Monitor (Maxim Integrated)
  • MAX34409 - SMBus Dual/Quad Current Monitor (Maxim Integrated)
  • MAX3440E - 15kV ESD-Protected / 60V Fault-Protected / 10Mbps / Fail-Safe RS-485/J1708 Transceivers (Maxim)
  • MAX34417 - SMBus Four-Channel High Dynamic Range Power Accumulator (Maxim Integrated)
  • MAX3441E - 15kV ESD-Protected / 60V Fault-Protected / 10Mbps / Fail-Safe RS-485/J1708 Transceivers (Maxim)
  • MAX3442E - 15kV ESD-Protected / 60V Fault-Protected / 10Mbps / Fail-Safe RS-485/J1708 Transceivers (Maxim)
  • MAX3443E - 15kV ESD-Protected / 60V Fault-Protected / 10Mbps / Fail-Safe RS-485/J1708 Transceivers (Maxim)
  • MAX34440 - PMBus 6-Channel Power-Supply Manager (Maxim Integrated)
Other Datasheets by Maxim Integrated Products
  • MAX3406 - (MAX3406 - MAX3408) Switchable Termination Networks
  • MAX341 - (MAX341 - MAX348) CMOS / DMOS Analog Switches
  • MAX3420E - USB Peripheral Controller
  • MAX3421E - USB Peripheral/Host Controller
  • MAX343 - (MAX341 - MAX348) CMOS / DMOS Analog Switches
  • MAX34406 - Quad Current-Sense Amplifier
  • MAX345 - (MAX341 - MAX348) CMOS / DMOS Analog Switches
  • MAX34561 - 12V/5V Hot-Plug Switch

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com 19-2141; Rev 0; 8/01 75Ω/100Ω/120Ω Switchable Termination Networks General Description The MAX3406/MAX3407/MAX3408 are general-purpose line-terminating networks designed to change the termination value of a line, depending on the state of a digital control line, allowing the connection to a coaxial cable or a twisted pair wire. These devices are switchable between 75Ω, 100Ω, and 120Ω. The MAX3406 can switch from 75Ω to 100Ω, the MAX3407 can switch from 75Ω to 120Ω, and the MAX3408 can switch from 100Ω to 120Ω termination. Termination resistance values are guaranteed to ±2.5% through -40°C to +85°C and for signal levels of ±3.6V. The MAX3406/MAX3407/MAX3408 consume only 50µA supply current and are fully specified for operation from a +4.5V to +5.5V power supply.
