MAX3441E - 15kV ESD-Protected / 60V Fault-Protected / 10Mbps / Fail-Safe RS-485/J1708 Transceivers

This page provides the datasheet information for the MAX3441E, a member of the MAX 15kV ESD-Protected / 60V Fault-Protected / 10Mbps / Fail-Safe RS-485/J1708 Transceivers family.

Datasheet Summary

Description

The MAX3440E

MAX3444E fault-protected RS-485 and J1708 transceivers feature ±60V protection from signal faults on communication bus lines.

Each device contains one differential line driver with three-state output and one differential line receiver with three-state input.

Features

±15kV ESD Protection.
±60V Fault Protection.
Guaranteed 10Mbps Data Rate (MAX3441E/MAX3443E).
Hot Swappable for Telecom.

Maxim

📥 Download Datasheet

Datasheet Details

Part number	MAX3441E
Manufacturer	Maxim
File Size	520.58 KB
Description	15kV ESD-Protected / 60V Fault-Protected / 10Mbps / Fail-Safe RS-485/J1708 Transceivers
Datasheet	MAX3441E Datasheet

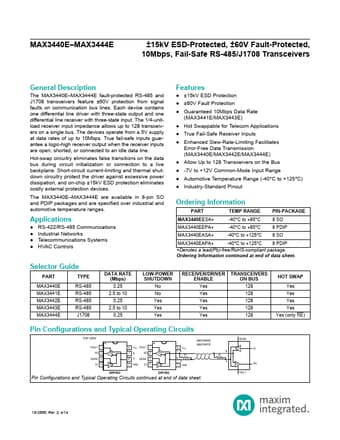

Additional preview pages of the MAX3441E datasheet.
