MAX34446 - PMBus Power-Supply Data Logger

Datasheet Summary

Description

The MAX34446 data logger for power supplies can monitor voltages for overvoltage and undervoltage, as well as for overcurrent conditions and overtemperature conditions.

Features

  • S Voltage, Current, and Temperature Measurement and Threshold Excursion Detection S Supports Up to Four Voltage or Current Measurements S Supports Up to Three Temperature Sensors: Two Remote Diodes Plus an Internal Sensor S Calculates Power Consumption S Differential 12-Bit ADC S PMBus™-Compliant Control Interface S Power-Good Outputs S Individual Fault Outputs S On-Board Nonvolatile Fault Logging and Default Configuration Setting S I2C/SMBus-Compatible Serial Bus with Bus Timeout Function S No.

📥 Download Datasheet

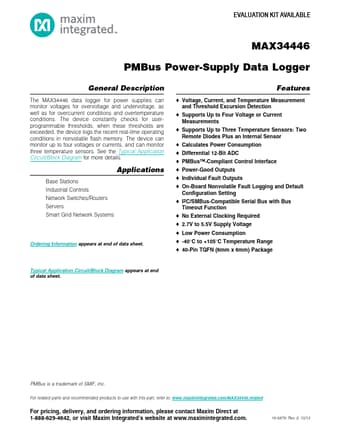

Datasheet preview – MAX34446

Datasheet Details

Part number MAX34446
Manufacturer Maxim Integrated
File Size 793.40 KB
Description PMBus Power-Supply Data Logger
Datasheet download datasheet MAX34446 Datasheet
Additional preview pages of the MAX34446 datasheet.
