MAX34440 - PMBus 6-Channel Power-Supply Manager

Datasheet Summary

Description

The MAX34440 is a complex system monitor that can manage up to six power supplies.

The power-supply manager monitors the power-supply output voltage and constantly checks for user-programmable overvoltage and undervoltage thresholds.

Features

  • S 6 Channels of Power-Supply Management Voltage Measurement/Monitoring Differential 12-Bit 1% Accurate ADC Min/Max Threshold Excursion Detection Supports Current Monitoring with External Current-Sense Amplifier Automatic Closed-Loop Margining Programmable Up and Down Sequencing Power-Good Output S Supports Up to Eight Temperature Sensors Two Remote Diode Temperature Sensors Five Local Temperature Sensors One Internal Temperature Sensor Fault Detection on All Temp Sensors S PMBus™-Complian.

📥 Download Datasheet

Datasheet preview – MAX34440

Datasheet Details

Part number MAX34440
Manufacturer Maxim Integrated
File Size 0.98 MB
Description PMBus 6-Channel Power-Supply Manager
Datasheet download datasheet MAX34440 Datasheet
Additional preview pages of the MAX34440 datasheet.

📁 Similar Datasheet

  • MAX3444E - 15kV ESD-Protected / 60V Fault-Protected / 10Mbps / Fail-Safe RS-485/J1708 Transceivers (Maxim)
  • MAX34406 - Quad Current-Sense Amplifier (Maxim Integrated Products)
  • MAX3440E - 15kV ESD-Protected / 60V Fault-Protected / 10Mbps / Fail-Safe RS-485/J1708 Transceivers (Maxim)
  • MAX3441E - 15kV ESD-Protected / 60V Fault-Protected / 10Mbps / Fail-Safe RS-485/J1708 Transceivers (Maxim)
  • MAX3442E - 15kV ESD-Protected / 60V Fault-Protected / 10Mbps / Fail-Safe RS-485/J1708 Transceivers (Maxim)
  • MAX3443E - 15kV ESD-Protected / 60V Fault-Protected / 10Mbps / Fail-Safe RS-485/J1708 Transceivers (Maxim)
  • MAX3406 - (MAX3406 - MAX3408) Switchable Termination Networks (Maxim Integrated Products)
  • MAX3407 - (MAX3406 - MAX3408) Switchable Termination Networks (Maxim Integrated Products)
  • MAX3408 - 75/100/120 Switchable Termination Networks (Maxim)
  • MAX341 - (MAX341 - MAX348) CMOS / DMOS Analog Switches (Maxim Integrated Products)
Other Datasheets by Maxim Integrated
  • MAX34446 - PMBus Power-Supply Data Logger
  • MAX34408 - SMBus Dual/Quad Current Monitor
  • MAX34409 - SMBus Dual/Quad Current Monitor
  • MAX34417 - SMBus Four-Channel High Dynamic Range Power Accumulator
  • MAX34451 - PMBus 16-Channel V/I Monitor and 12-Channel Sequencer/Marginer
  • MAX34460 - PMBus 12-Channel Voltage Monitor/Sequencer
  • MAX34461 - PMBus 16-Channel Voltage Monitor/Sequencer
  • MAX3450E - ESD-Protected USB Transceivers

Full PDF Text Transcription

Click to expand full text

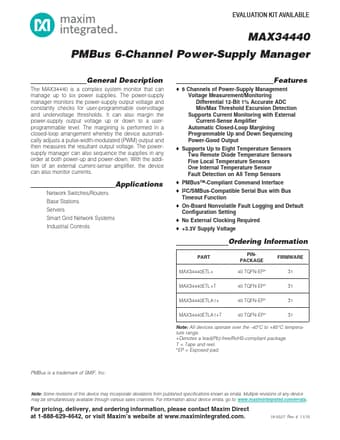

EVALUATION KIT AVAILABLE MAX34440 PMBus 6-Channel Power-Supply Manager General Description The MAX34440 is a complex system monitor that can manage up to six power supplies. The power-supply manager monitors the power-supply output voltage and constantly checks for user-programmable overvoltage and undervoltage thresholds. It can also margin the power-supply output voltage up or down to a userprogrammable level. The margining is performed in a closed-loop arrangement whereby the device automatically adjusts a pulse-width-modulated (PWM) output and then measures the resultant output voltage. The powersupply manager can also sequence the supplies in any order at both power-up and power-down. With the addition of an external current-sense amplifier, the device can also monitor currents.
