MAX3980 Datasheet - Maxim Integrated Products

MAX3980, 3.125Gbps Xaui Quad Equalizer

19-2153; Rev 3; 12/08 www.DataSheet4U.com KIT ATION EVALU E L B AVAILA 3.125Gbps XAUI Quad Equalizer General .
Features. Four Differential Digital Data “Lanes” at 3. Spans 40in (1. Receiver Equalization Re.

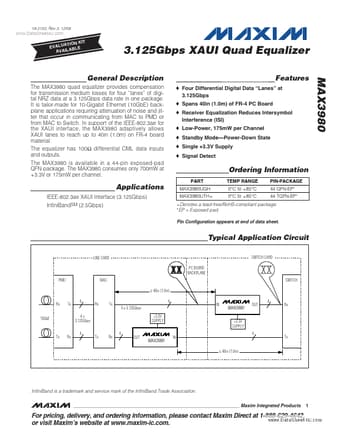

datasheet Preview Page 1 from Datasheet4u.com

MAX3980_MaximIntegratedProducts.pdf

MAX3980 Datasheet Preview — Preview of MAX3980 PDF

Datasheet Details

Part number:

MAX3980

Manufacturer:

Maxim Integrated ↗ Products

File Size:

472.96 KB

Description:

3.125Gbps Xaui Quad Equalizer

Features

* Four Differential Digital Data “Lanes” at 3.125Gbps
* Spans 40in (1.0m) of FR-4 PC Board
* Receiver Equalization Reduces Intersymbol Interference (ISI)
* Low-Power, 175mW per Channel
* Standby Mode
* Power-Down State
* Single +3.3V Supply

Applications

* requiring attenuation of noise and jitter that occur in communicating from MAC to PMD or from MAC to Switch. In support of the IEEE-802.3ae for the XAUI interface, the MAX3980 adaptively allows XAUI lanes to reach up to 40in (1.0m) on FR-4 board material. The equalizer has 100Ω differential CML data
