MAX3982

SFP Copper-Cable Preemphasis Driver

MAX3982 Features

* SFP-compliant loss-of-signal detection with selectable sensitivity and TX_DISABLE. Selectable output swing reduces EMI and power consumption. It is packaged in a 3mm x 3mm, 16-pin thin QFN and operates from 0°C to +85°C temperature range.

* Drives Up to 15m with 24AWG Cable

* Drives

MAX3982 General Description

The MAX3982 is a single-channel, copper-cable preemphasis driver that operates from 1Gbps to 4.25Gbps. It provides compensation for copper links, such as 4.25Gbps Fibre Channel, allowing spans of up to 15m with 24AWG. The cable driver provides four selectable preemphasis levels. The input compensate.

MAX3982 Datasheet (699.62 KB)

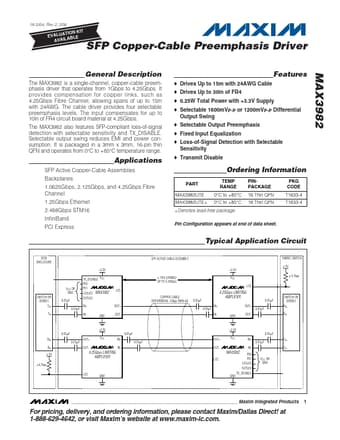

Preview of MAX3982 PDF

Datasheet Details

Part number:

MAX3982

Manufacturer:

Maxim Integrated ↗ Products

File Size:

699.62 KB

Description:

Sfp copper-cable preemphasis driver.
