MAX4865, MAX4864L (MAX4864L - MAX4867) Overvoltage Protection Controllers

Maxim Integrated Products

Description

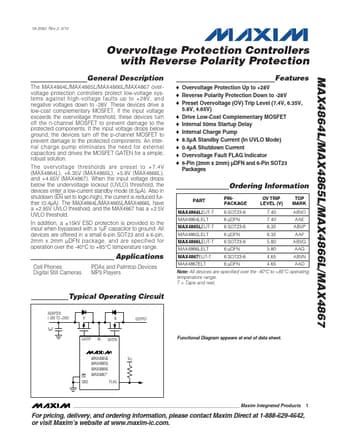

DataSheet.in 19-3582; Rev 1; 5/06 Overvoltage Protection Controllers with Reverse Polarity Protection General .
The MAX4864L/MAX4865L/MAX4866L/MAX4867/ MAX4865/MAX4866 overvoltage protection controllers protect low-voltage systems against high-voltage faults up.

📥 Download Datasheet

MAX4865 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX4865, MAX4864L. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MAX4865, MAX4864L
Manufacturer: Maxim Integrated ↗ Products
File Size: 172.00 KB
Datasheet: MAX4864L_MaximIntegratedProducts.pdf
Description: (MAX4864L - MAX4867) Overvoltage Protection Controllers
Note: This datasheet PDF includes multiple part numbers: MAX4865, MAX4864L.
Please refer to the document for exact specifications by model.

Features

* Overvoltage Protection Up to +28V
* Reverse Polarity Protection Down to -28V
* Preset Overvoltage (OV) Trip Level (7.4V, 6.35V, 5.8V, 4.65V)
* Drive Low-Cost Complementary MOSFET
* Internal 50ms Startup Delay
* Internal Charge Pump
* 8.5µA St

Applications

* Cell Phones Digital Still Cameras PDAs and Palmtop Devices MP3 Players Note: All devices are specified over the -40°C to +85°C operating range. Typical Operating Circuit ADAPTER (-28V TO +28V) 1µF GATEP IN GATEN GND 2 P N Pin Configurations TOP VIEW OUTPUT IN 1 6 EN GND 1 6 GATEN EN GND
