MAX4867, MAX4864L Overvoltage Protection Controllers

MAX4867 Description

DataSheet.in 19-3582; Rev 1; 5/06 Overvoltage Protection Controllers with Reverse Polarity Protection General .
The MAX4864L/MAX4865L/MAX4866L/MAX4867/ MAX4865/MAX4866 overvoltage protection controllers protect low-voltage systems against high-voltage faults up.

MAX4867 Features

* Overvoltage Protection Up to +28V
* Reverse Polarity Protection Down to -28V
* Preset Overvoltage (OV) Trip Level (7.4V, 6.35V, 5.8V, 4.65V)
* Drive Low-Cost Complementary MOSFET
* Internal 50ms Startup Delay
* Internal Charge Pump
* 8.5µA St

MAX4867 Applications

* Cell Phones Digital Still Cameras PDAs and Palmtop Devices MP3 Players Note: All devices are specified over the -40°C to +85°C operating range. Typical Operating Circuit ADAPTER (-28V TO +28V) 1µF GATEP IN GATEN GND 2 P N Pin Configurations TOP VIEW OUTPUT IN 1 6 EN GND 1 6 GATEN EN GND

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX4867, MAX4864L. Please refer to the document for exact specifications by model.

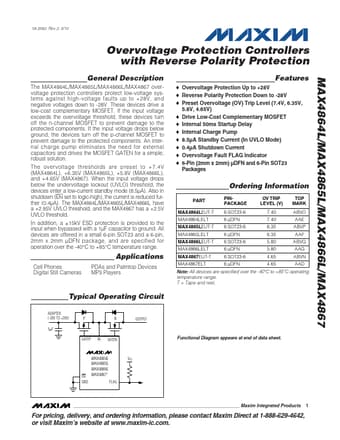

datasheet Preview Page 2 datasheet Preview Page 3
