MAX4866 - Overvoltage Protection Controllers

Product Overview

Maxim Integrated Products

Datasheet Details

Part number	MAX4866
Manufacturer	Maxim Integrated Products
File Size	172.00 KB
Description	Overvoltage Protection Controllers
Datasheet	MAX4866 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX4866, MAX4864L. Please refer to the document for exact specifications by model.

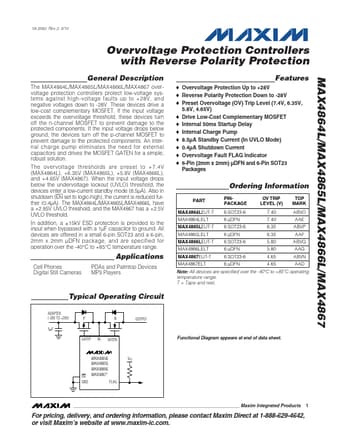

Additional preview pages of the MAX4866 datasheet.

Product details

Description

The MAX4864L/MAX4865L/MAX4866L/MAX4867/ MAX4865/MAX4866 overvoltage protection controllers protect low-voltage systems against high-voltage faults up to +28V, and negative voltages down to -28V.

Features

Overvoltage Protection Up to +28V.
Reverse Polarity Protection Down to -28V.
Preset Overvoltage (OV) Trip Level (7.4V, 6.35V, 5.8V, 4.65V).
Drive Low-Cost Complementary MOSFET.
Internal 50ms Startup Delay.
Internal Charge Pump.
8.5µA Standby Current (In UVLO Mode).
0.4µA Shutdown Current.
Overvoltage Fault FLAG Indicator.
6-Pin (2mm x 2mm) µDFN and 6-Pin SOT23 Packages MAX4864L/MAX4865L/MAX4866L/MAX4867/M.
