MAX5392 - Linear Taper Digital Potentiometer

Product Overview

Maxim Integrated Products

Datasheet Details

Part number	MAX5392
Manufacturer	Maxim Integrated Products
File Size	2.32 MB
Description	Linear Taper Digital Potentiometer
Datasheet	MAX5392 Datasheet

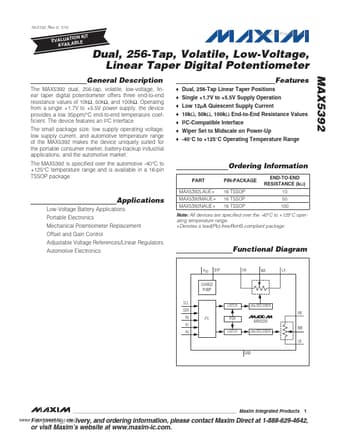

Additional preview pages of the MAX5392 datasheet.

Product details

Description

The MAX5392 dual, 256-tap, volatile, low-voltage, linear taper digital potentiometer offers three end-to-end resistance values of 10kI, 50kI, and 100kI.

Features

S Dual, 256-Tap Linear Taper Positions S Single +1.7V to +5.5V Supply Operation S Low 12µA Quiescent Supply Current S 10kI, 50kI, 100kI End-to-End Resistance Values S I2C-Compatible Interface S Wiper Set to Midscale on Power-Up S -40NC to +125NC Operating Temperature Range General.
