MAX5395 Datasheet - Maxim

MAX5395 Low-Voltage Linear Taper Digital Potentiometer

The MAX5395 single, 256-tap volatile, low-voltage linear taper digital potentiometer offers three end-toend resistance values of 10kΩ, 50kΩ, and 100kΩ. Potentiometer terminals are independent of supply for voltages up to 5.25V with single-supply operation from 1.7V to 5.5V (charge pump enabled). Use.

MAX5395 Features

* an I2C serial interface. The small package size, low operating supply voltage, low supply current, and automotive temperature range of the MAX5395 make the device uniquely suited for the portable consumer market, battery-backup industrial applications, and automotive market. The MAX5395 is available

MAX5395-Maxim.pdf

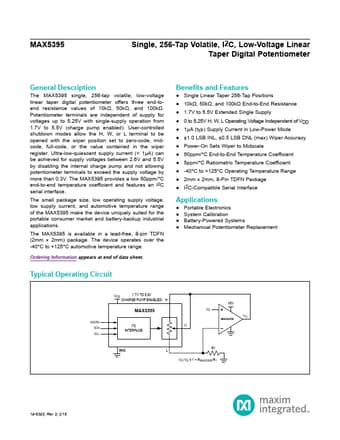

Preview of MAX5395 PDF
MAX5395 Datasheet Preview Page 2 MAX5395 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX5395

Manufacturer:

Maxim

File Size:

810.61 KB

Description:

Low-voltage linear taper digital potentiometer.
