MAX539

+5V / Low-Power / Voltage-Output / Serial 12-Bit DACs

Maxim

MAX539 Features

* o Operate from Single +5V Supply o Buffered Voltage Output o Internal 2.048V Reference (MAX531) o 140µA Supply Current (MAX538/MAX539) o INL = ±1/2LSB (max) o Guaranteed Monotonic over Temperature o Flexible Output Ranges: 0V to VDD (MAX531/MAX539) VSS to VDD (MAX531) 0V to 2.6V (MAX531/MAX538) o 8-

MAX539 General Description

The MAX531/MAX538/MAX539 are low-power, voltageoutput, 12-bit digital-to-analog converters (DACs) specified for single +5V power-supply operation. The MAX531 can also be operated with ±5V supplies. The MAX538/MAX539 draw only 140µA, and the MAX531 (with internal reference) draws only 260µA. The MAX5.

MAX539 Datasheet (207.70 KB)

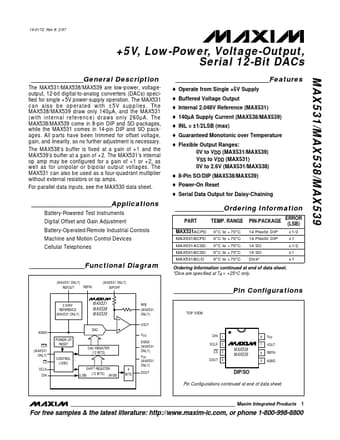

MAX539 Datasheet Preview — Preview of MAX539 PDF

Datasheet Details

Part number:

MAX539

Manufacturer:

Maxim

File Size:

207.70 KB

Description:

+5v / low-power / voltage-output / serial 12-bit dacs.
