MAX6672 PWM Output Temperature Sensors

The MAX6672/MAX6673 are low-current temperature sensors with a single-wire output. These temperature sensors convert the ambient temperature into a 1.4kHz PWM output, which contains the temperature information in its duty cycle. The MAX6672 has an open-drain output and the MAX6673 has a push-pull ou.

MAX6672 Features

* MAX6672/MAX6673 Applications Industrial and Process Control HVAC Automotive Environmental Control Isolated Temperature Sensing PART Ordering Information TEMP RANGE MAX6672AXK-T -40°C to +125°C MAX6673AXK-T -40°C to +125°C PINPACKAGE 5 SC70-5 5 SC70-5 TOP MARK ACQ ACR Typical Application Circuit

MAX6672_MaximIntegratedProducts.pdf

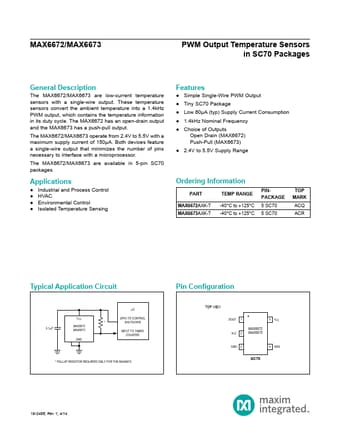

Preview of MAX6672 PDF
