MAX6676 Low-Voltage / 1.8kHz PWM Output Temperature Sensors

The MAX6676/MAX6677 are high-accuracy, low-power temperature sensors with a single-wire output. The MAX6676/MAX6677 convert the ambient temperature into a ratiometric PWM output with temperature information contained in the duty cycle of the output square wave. The MAX6676 has an open-drain output a.

MAX6676 Features

* Simple Single-Wire, 1.8kHz PWM Output

* Operates Down to 1.8V

* High Accuracy ±1.5°C at TA = +25°C ±3.0°C at TA = 0°C to +85°C

* Operates from -40°C to +125°C

* Low 80µA Typical Current Consumption

* Small 6-Pin SOT23 Package Ordering Informat

MAX6676 Datasheet (366.00 KB)

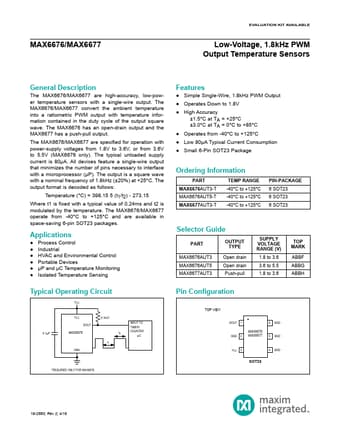

MAX6676 Datasheet Preview — Preview of MAX6676 PDF

Datasheet Details

Part number:

MAX6676

Manufacturer:

Maxim

File Size:

366.00 KB

Description:

Low-voltage / 1.8khz pwm output temperature sensors.
