MAX6842, MAX6841 - (MAX6841 - MAX6845) Ultra-Low-Voltage uP Reset Circuits and Voltage Detectors

MAX6842 Description

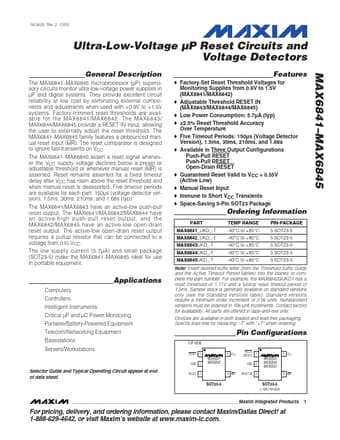

19-2625; Rev 1; 2/03 www.DataSheet4U.com Ultra-Low-Voltage µP Reset Circuits and Voltage Detectors General .
Features o Factory-Set Reset Threshold Voltages for Monitoring Supplies from 0.

MAX6842 Features

* o Factory-Set Reset Threshold Voltages for Monitoring Supplies from 0.9V to 1.5V (MAX6841/MAX6842) o Adjustable Threshold RESET IN (MAX6843/MAX6844/MAX6845) o Low Power Consumption: 5.7µA (typ) o ±2.5% Reset Threshold Accuracy Over Temperature o Five Timeout Periods: 150µs (Voltage Detector Version)

MAX6842 Applications

* Computers Controllers Intelligent Instruments Critical µP and µC Power Monitoring Portable/Battery-Powered Equipment Telecom/Networking Equipment Basestations Servers/Workstations Note: Insert desired suffix letter (from the Threshold Suffix Guide and the Active Timeout Period tables) into the blan
