MAX6844 - (MAX6841 - MAX6845) Ultra-Low-Voltage uP Reset Circuits and Voltage Detectors

Product Overview

Maxim Integrated Products

Part number	MAX6844
Manufacturer	Maxim Integrated Products
File Size	558.85 KB
Description	(MAX6841 - MAX6845) Ultra-Low-Voltage uP Reset Circuits and Voltage Detectors
Datasheet	MAX6844 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX6844, MAX6841. Please refer to the document for exact specifications by model.

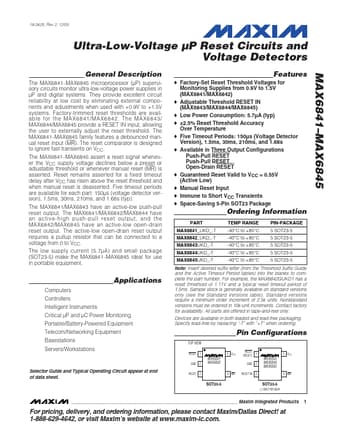

Additional preview pages of the MAX6844 datasheet.

o Factory-Set Reset Threshold Voltages for Monitoring Supplies from 0.9V to 1.5V (MAX6841/MAX6842) o Adjustable Threshold RESET IN (MAX6843/MAX6844/MAX6845) o Low Power Consumption: 5.7µA (typ) o ±2.5% Reset Threshold Accuracy Over Temperature o Five Timeout Periods: 150µs (Voltage Detector Version), 1.5ms, 30ms, 210ms, and 1.68s o Available in Three Output Configurations Push-Pull RESET Push-Pull RESET Open-Drain RESET o Guaranteed Reset Valid to VCC = 0.55V (Active Low) o Manual Reset Input o.
