MAX6961

4-Wire Serially Interfaced 8 x 8 Matrix Graphic LED Drivers

MAX6961 General Description

The MAX6960

*MAX6963 are compact cathode-row display drivers that interface microprocessors to 8 x 8 dotmatrix red, green, and yellow (R,G,Y) LED displays through a high-speed 4-wire serial interface. The MAX6960

*MAX6963 drive two monocolor 8 x 8 matrix displays, or a single RGY 8 x 8.

MAX6961 Datasheet (236.61 KB)

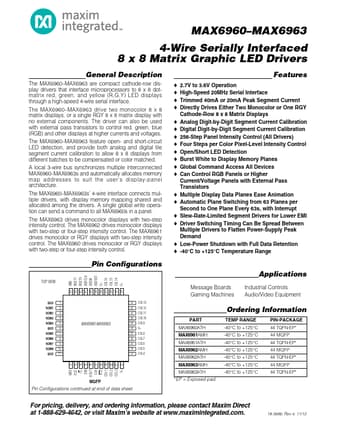

Preview of MAX6961 PDF

Datasheet Details

Part number:

MAX6961

Manufacturer:

Maxim Integrated ↗ Products

File Size:

236.61 KB

Description:

4-wire serially interfaced 8 x 8 matrix graphic led drivers.
MAX6960

*MAX6963 4-Wire Serially Interfaced 8 x 8 Matrix Graphic LED Drivers GND 12 OSC 13 CS 14 DIN 15 DOUT 16 CLK 17 RST 18 COL1 19 COL2 20.
